Do-It-Yourself Gym Equipment

The gym equipment you buy at the store goes through meticulous testing to ensure it is safe. It is up to you to be sure these tools are properly constructed and appropriately used as part of your training.

The fitness industry is a big business — an industry with exponential growth.

From gym fees to DVD workout programs, hi-tech clothing to activity trackers, the cost of getting fit can be forbidding to people, especially when many of us would like to use that “fitness” in adventures that have their own costs associated. That is why we suggest minimizing costs by building your own equipment.

When it comes to equipment, heavy things are heavy things.

Yes, a barbell setup can be a great strength-building tool, but 100 pounds on a barbell weighs exactly the same as 100 pounds in a sandbag. Both can make you stronger, and each has advantages over the other.

One of the advantages of Spartan SGX training is its focus on simple bodyweight exercises and bodyweight training tools — many of which can be made right at home.

Do-It-Yourself Gym Equipment

Here are instructions for building an arsenal of training equipment without having to dip into your children’s college fund.

1) Slosh Pipes

These pipes turn several conventional exercises into challenging stability tests. As the water inside the pipe sloshes around, your mind and body must work hard to keep the pipe from falling. The best part is that, in terms of supplies, the plumbing industry has done the prep work for you, and everything you need is easy to find at your local hardware store. Once you have the supplies, it is a simple process of gluing them together.

Required Materials:

• Six to seven feet of 4-inch PVC pipe
• Two 4-inch PVC end-caps
• Watertight sealant glue or epoxy

Approximate cost: $20

To build your slosh pipe, follow these instructions:

1. Glue one end-cap to the pipe and let it dry.
2. Fill the pipe about two thirds of the way with water.
3. Glue the remaining end cap to the pipe and let it dry.
4. Decorate the slosh pipe however you like.

Assembly should take about 10 minutes (excluding drying time).

Your new slosh pipe will add a challenge to a walking lunge, overhead press or squat. You can also carry the slosh pipe over long distances to mix balance with endurance.

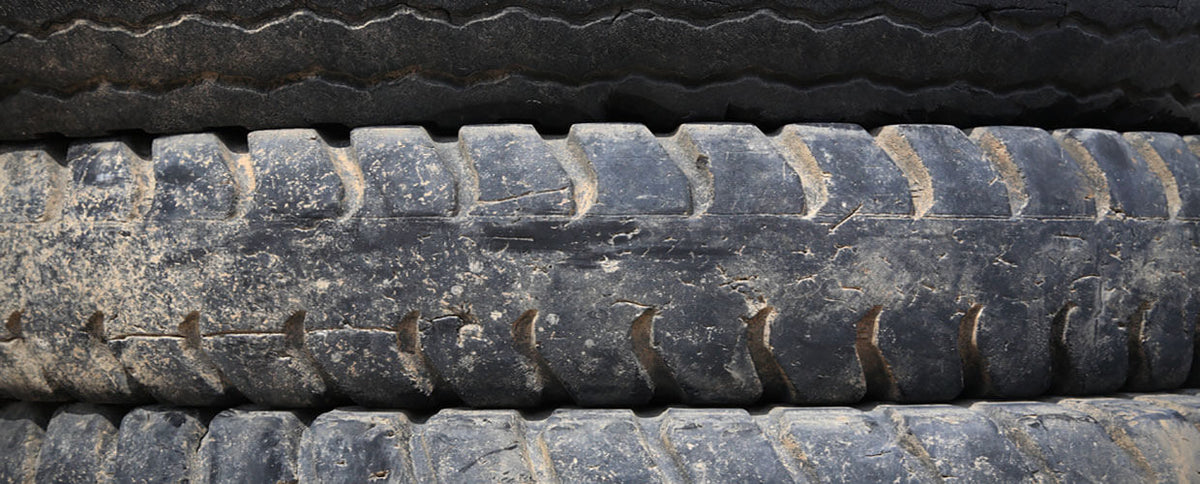

2) Truck Tires

Tires can be great strength-building and conditioning tools. Their odd shape will force your body to adapt to movement patterns outside of what a traditional barbell or stationary machine requires.

It is easy to get a tire. Most truck repair shops or scrap yards have used tires lying around taking up space, and often the shop owner will not charge you much (if anything at all) to take one off their hands. Just make sure you have a vehicle to transport it.

Approximate cost: At most, a used tire will cost about $50

You can do flips, drags, deadlifts, “sled” pushes, box jumps, “in and outs,” heavy carries and more with your tire.

3) Suspension Trainer

A suspension trainer is essentially a rope with comfortable handles. This unstable platform will test your neural function much more than a stable platform and will make basic exercises more challenging.

You can probably find everything you need for your suspension trainer at the same home improvement store you used for your slosh pipe.

Required Materials:

• Ten-to-fifteen feet of 1-inch diameter nylon rope (You may use thinner rope if you double it up.)
• Two 6-inch sections of 1¼-inch diameter PVC pipe for handles

Approximate cost: $20

Thread the rope through the pipe on each end, tying it back to itself to create the handles.

Throw your rope over a sturdy tree branch and use it to build grip strength, upper and lower-body strength and core strength. Exercises like push-ups, inverted rows, planks and mountain climbers will be more challenging with this device. Google “TRX exercises” for limitless ideas.

4) Wrist Roller

Grip strength is important for completing obstacles such as the Rope Climb, the Hercules Hoist, and the Traverse Wall. A wrist roller, as its name suggests, works your wrists and forearms.

Required Materials:

• Two feet of 1- to 2-inch PVC pipe
• 45 inches of nylon rope, at least ½-inch diameter
• One large carabiner

Approximate cost: $10

To assemble your wrist roller, follow these steps:

1. Drill a hole through both sides of the pipe near the midpoint making sure the hole is large enough to thread the rope.
2. Thread the rope straight through both holes and tie it off.
3. Tie the other end of the rope to the carabiner.
4. Attach the carabiner-end of the rope to a small kettlebell, dumbbell or anything else you can think of to add some weight.

To use the wrist roller, hold the pipe in front of you with your arms at your sides and elbows bent at 90 degrees. (Your palms can be facing up or down.) Lift the weight by twisting the pipe. The rope should wrap around the pipe as you twist. Twist in the other direction to lower the weight.

5) Climbing Rope

This is something you will definitely want to practice before race day. Mastering this obstacle requires skill and strength, but not a lot of money.

You can purchase a rope from a retailer of your choice. We recommend you buy about 25-35 feet of manila rope, 1-inch thick, with a splice loop. Plan ahead, and decide where you would like to hang the rope before you buy it. It is better to have a little extra rope than not enough.

Approximate cost: $40-$50

Securing the rope is not difficult.

1. Find a secure branch or beam and throw the loop end over.
2. Slip the other end through the loop, and pull tightly. This should not take more than two minutes.

For instructions on how to train with your new rope, search on YouTube for videos of athletes demonstrating S- and J-hook techniques to climb. Once you have mastered those moves, try using the rope for pull-ups and dead hangs to work your grip and upper-body strength.

6) Atlas Stones

Training with an Atlas Stone can help you develop strength and explosive power. This DIY-variety offers the added benefit of awkward size, which means that it will take some additional effort to stabilize the load. Use stones of different sizes for different movements.

Since the earth is made mostly of rock, you might be able to find a good-sized one nearby. If not, you can buy a stone at your local landscaping retailer. Anything between 20 and 45 pounds will do.

Approximate cost: 2-10 cents per pound, depending on type and size.

If you have purchased a large, heavy stone, read up on how to “load,” or lift, an Atlas Stone. (We want to be cost-effective, but we do not cut corners with safety.) You can also incorporate your Atlas stone into your favorite gym exercises, such as the squat. If your stone is not round, try pinch-grips, pinch-swings, and a pinch-grip farmer’s carry.

7) Tire Sled

Now that you have your tires on hand, you can double their functionality by using them as a sled. You can do this in two ways. First, you can pull the sled from a seated position. Second, you can pull the sled from a standing position (think horse-and-plough) to strengthen your legs. Either of these variations will serve you well on race day.

You can find all of the supplies you need for a tire sled at your local home improvement store (or in your garage collecting dust).

Required Materials:

• Two and a half feet of ½-inch diameter link chain (Make sure to purchase linked chain, as other chain is pinched together and not soldered. With heavy loads, it will separate. Use the cutting machine at the store.)
• Chain link connector conduit (Before you leave the store, make sure that this connector will fit inside the link chain so that you can connect the two pieces.)
• Ten to thirty feet of ½-inch diameter nylon rope (Measure your space beforehand so that you can estimate how much rope you will need. Many stores will cut and melt the ends for you, so do not be afraid to ask.)

Approximate cost: $15

To assemble your tire sled, follow these instructions:

1. Loop the chain around the tire(s) and secure using the link chain connector conduit.
2. Use the rope to tie a knot around the chain at any point. You do not need to tie it at the connector conduit. (This chain link allows you to remove the assembly so that you can use the tire(s) for other purposes with ease.)

To use the sled, place the tire as far away from you as you can. Extend the rope to its maximum length. Sit. While seated, dig your heels into the ground, grip the rope and pull the tire toward you. Stop when the tire reaches your feet. Repeat.

8) Sled Drag

This exercise activates your hands, arms, abs, back and legs. Scale the exercise by varying the weight of the sled, its distance from you at the start, or the diameter of the pulling rope.

Look for the following items at your local hardware or home improvement store:

• Chain and chain link connector conduit (See instructions for the “tire sled” above.) (Before you leave the store, make sure that this connector will fit inside the link chain so that you can connect the two pieces.)
• Ten feet of nylon rope (at least ½-inch thick) or small link chain (at least ½-inch thick)
• Two to three feet of ½-inch rigid electrical conduit (Be sure to buy the rigid conduit that is designed to be bent into curves. You can purchase it pre-cut or ask to have it cut to length.)

Approximate cost: $10

Note: If you already built the tire sled, it might be much cheaper.

To assemble your sled drag, follow these instructions:

1. Thread one end of the rope or chain through the electrical conduit.
2. Once threaded through the conduit, tie the ends so that they are secure. (Try a double fisherman’s knot.)
3. Put the chain and link (from the tire sled) around the tire.
4. Interlock the chain that is around the tire with the loop that is threaded through the conduit.

To use the sled drag, step into the loop and place the tire behind you. Bring the section of conduit to your hips. Depending on the size and weight of the tire and the surface of the floor, you can use the sled drag to do acceleration drills or full-out drags.

9) Medicine Ball

Medicine balls are great tools for speed, strength and endurance work. Depending on its weight and the exercise(s) you choose, one ball can work your entire body. However, medicine balls are expensive, sometimes up to $100 each.

Thankfully, you can build your own with supplies from a home improvement store, discount sporting goods store, or online. Look for the following items:

• Basketballs: The weight of your medicine ball will depend on the size of the basketball, so choose wisely. (Kid-sized basketballs will produce medicine balls that are 10 pounds or lighter.)
• One funnel that fits inside the the basketball’s rubber inflation port (You can usually find funnels at dollar stores. When measuring for the funnel size, be sure it is measured for the rubber fitting over the port and not the tiny hole where the needle is placed.)
• One fifty-pound bag of sand
• One small tube of silicone adhesive (Be sure that the adhesive will bond rubber)

All this should cost about $10 if you already have a basketball. Cheap basketballs should cost no more than $15, used ones cost even less.

To assemble your medicine ball, follow these instructions:

1. Use a pair of needle nose pliers to remove the rubber fitting over the inflation port of the basketball.
2. Keep the plug.
3. Insert the funnel into the hole.
4. Fill the ball with sand until it reaches the desired weight.
5. Coat the hole from which the plug was removed with the silicone adhesive.
6. Coat the plug with silicone adhesive.
7. Insert the plug into the ball.
8. Coat the surface of the ball around the plug with a touch of silicone.
9. Insert the needle of a ball pump into the plug to ensure it is clear of adhesive.
10. Let the ball sit for at least 24 hours.
11. After 24 hours, use a ball pump to fill the remaining space in the ball with air. Do not overfill.

The adhesive takes at least 24 hours to dry.

Hug your new medicine ball to your chest and perform a series of squats. To progress the movement, press the ball overhead when you rise from your squat.

With a little creativity, research and tenacity you will soon question why anyone would pay thousands of dollars for fancy machines when they could be training in their own garage or outdoors for less than the cost of a nice pair of sneakers.

Training on your own is fun, but training with a group is even more fun. Find a Spartan SGX Coach who offers group training classes near you.

Get after it. AROO!
